| speed: | 45-50pcs/min | material: | 135-450gsm(single and double PE coated paper ) |
|---|---|---|---|
| cup size: | <32oz | out put: | 380/220v 50 HZ 4.8KW |

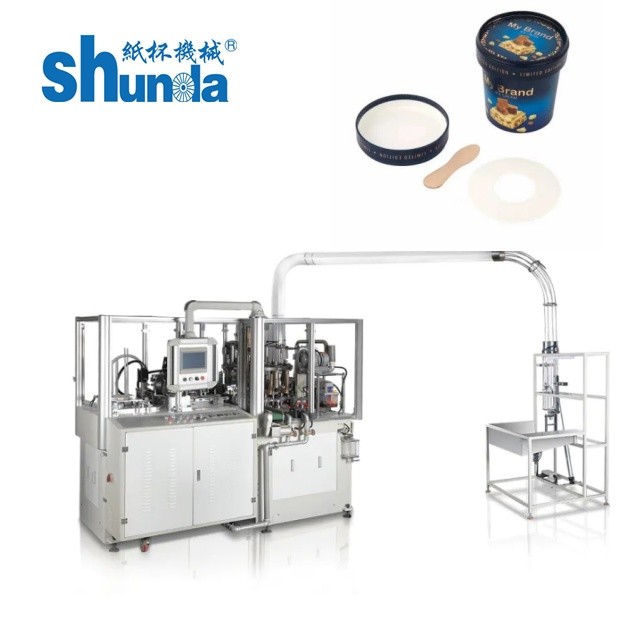

Single Sided PE Coated Paper Ice Cream Cup Making Machine Ultrasonic
3. Divided box: 125’ type, it has the long life than 100’
4. Shunda’s Base board is nearly double than others,guarantee the machinery working stable ,longer using.
5. We use Ultrasonic to heat the paper body,make the sealing more stronger.
6. Two station bottom-paper heating system,which is more better.
7.our mold is steel anti-rust treatment.
Detail:
| MODEL | ZBJ-12A |
| Speed | 40-50pcs/min |
| Cup size Range | 2-32oz |
| Material | Single and double PE coated paper |
| Heating system | Ultrasonic |
| Output | 380V,4 KW ,50HZ, Three Phase four wire |
| Net weight | 1.3 TONS |
| Machinery Size | 2700 *1450*1600 MM |
| Paper request | 135gsm-450gsm |
| Warranty | 3 Years |
| Description | ZBJ-12A paper cup machine is a high gram paper cup shaping machine, it runs a whole procedure of the paper feeding, gluing, oiling, and bottom punching, heating, rolling, rounding, and tripping.It is an automatic machine you can control the speed according to the production! For a better cup body and bottom connection, it used ultrasonic and hot air for heating, the heating phase into three steps, advanced technology allowed facility more safty both on itself and operator.It is an ideal equipment to make the paper cups for hot drink, cold drink, and ice cream paper cups. It is intellectualization equipment, easy to operate (one person).It has the whole production line from paper fan to ready paper cup. We supply 2 year used spare parts for free. |
Warranty
Our warranty includs three parts
1.the machinery has 3 years warranty
2.the electric appliance has 1 year.
3.Ultrasonic according to the Ever Green standard,ever green ultrasonic is a good brand in Taiwan.
Besides,General freight is paid by buyer, we provide materials for free when in the warranty time.
About training
You can come to our factory to learn how to installation,maintain and adjust,we will provide you guidance until you muster.Or we can dispatch the engineer to your factory.
