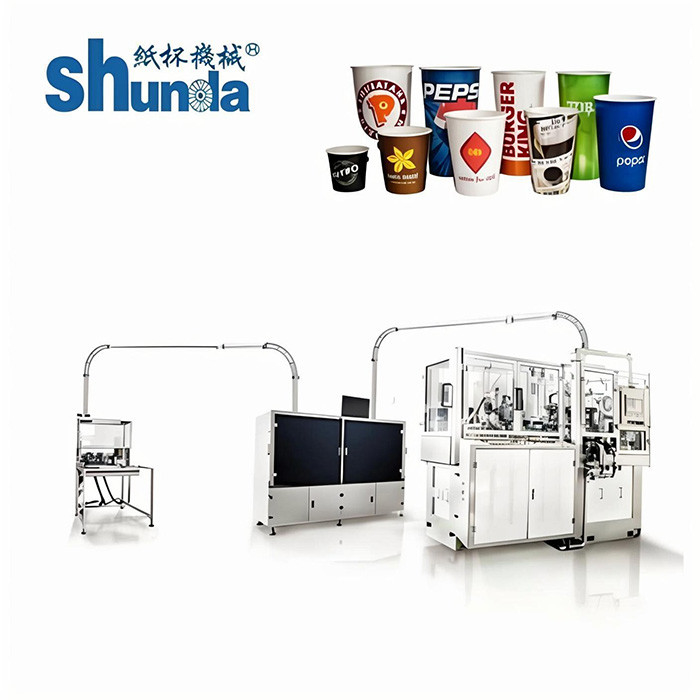

Automatic Paper Cup Machine, automatic high speed cold and hot paper cup making machine

अच्छी गुणवत्ता कागज कप चाय बनाने की मशीन बिक्री के लिए
अच्छी गुणवत्ता कागज कप चाय बनाने की मशीन बिक्री के लिए
I love their machinery, pretty good quality. Their service is Amazing ,Big kiss To jenny~~

—— Mr. Hang Seng

I deal only with Shunda. Other haven't goid quality,i check other machine. First time using, U will have problem.

—— Rafik

मैं अब ऑनलाइन चैट कर रहा हूँ

Automatic Paper Cup Machine, automatic high speed cold and hot paper cup making machine

चीन Automatic Paper Cup Machine, automatic high speed cold and hot paper cup making machine आपूर्तिकर्ता
Automatic Paper Cup Machine, automatic high speed cold and hot paper cup making machine आपूर्तिकर्ता Automatic Paper Cup Machine, automatic high speed cold and hot paper cup making machine आपूर्तिकर्ता Automatic Paper Cup Machine, automatic high speed cold and hot paper cup making machine आपूर्तिकर्ता Automatic Paper Cup Machine, automatic high speed cold and hot paper cup making machine आपूर्तिकर्ता

बड़ी छवि :  Automatic Paper Cup Machine, automatic high speed cold and hot paper cup making machine

उत्पाद विवरण:

Place of Origin: China
ब्रांड नाम: Shunda
प्रमाणन: CE ISO9001 CCC CNAS
Model Number: SMD-90

भुगतान & नौवहन नियमों:

Minimum Order Quantity: 1 set
मूल्य: USD0-60000 per set
Packaging Details: 2.7x1.5x1.5m standard seaworthy wooden+pp film package
Delivery Time: 18 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 18 sets per month
Contact Now
विस्तृत उत्पाद विवरण
paper fan weight: 135-450gsm cup size: 2-32oz
sealing mode: Ultrasonic EVERGREEN paper fan feeding: automatical
bottom paper: 2 times heating by Leister hemming: oiling and rotating

Automatic Paper Cup Machine, automatic high speed cold and hot paper cup

making machine







Description



SMD-90B is a Paper Cup machine,which is designed By HAINING CHENGDA MACHINERY

CO.,LTD,It can produce both single and Double PE coated paper Bowls. As technology development, it will take place of the formally machines in market day by day.

1. Hi-tech Cylindrical indexing gear
2. Switzerland Hot air sealing device
3. Mitsubishi PLC tracking and Touch screen Controlling cabinet
4. Servo-driven bottom-web feed with infinitely variable setting
5. Automatic lubrication system
6. Infinitely variable drive
7. Safety Door opening protection device
8. Photoelectric tracking and detecting every step
9. Automatic collecting and counting cups







Specification



MODEL SMD 90 AUTOMATICAL MIDDLE SPEED PAPER CUP MACHINE
SPEED 100 CUPS/MINUTE
CUP SIZE

TOP DIAMETER 60MM TO 100MM

BOTTOM DIAMETER 40MM TO 80MM

HEIGHT 50MM TO 150MM

PAPER FAN 135 TO 450 GRAM
CONFGURATION ULTRASONIC HOT AIR HEATING
OUTPUT 12KW , 380V/220V, 60HZ
MACHINE WEIGHT 3.5TONS
MACHINE SIZE 2500 X1800 X1700 MM
CUP COLLECTOR SIZE 900X900X1760 MM
AIR COMPRESSOR 0.45MPA







Highlights



Original Leister heaters

Panasonic track switches

food grade moulds

Anti rust components

Automatic Paper Cup Machine, automatic high speed cold and hot paper cup making machine



Ultrasonic system from Taiwan--EVERGREEN brand



Automatic Paper Cup Machine, automatic high speed cold and hot paper cup making machine







Quality control



1).All parts are inspected then applied



2).10 year experience assembly workers,always follow strict quality rules



3). 3 years warranty, 7 day 24 hour service availble.





QUANTITY GUARANTEE

The Seller guarantee the machines are new 100% and the guarantee period shall be

given 36 (thirty-six) months which starts from the date of the machine’s arrival.

During this period, the Seller shall provide free spare parts that caused by the machine

quality.





INSTALLATION OF THE MACHINE

The Seller shall send one technician to install the machine for The Buyer and will train

the workers how to operate the machines, but the Buyer shall be in charge of all the

technician’s expenses including transportation expenses( including round way tickets),

visa, accommodation, food. And the Buyer also shall be in charge of salary for technician

( USD 150/day).



Automatic Paper Cup Machine, automatic high speed cold and hot paper cup making machine



Locate us--1.5 hours drive from Shanghai Pudong Airport



Automatic Paper Cup Machine, automatic high speed cold and hot paper cup making machine
