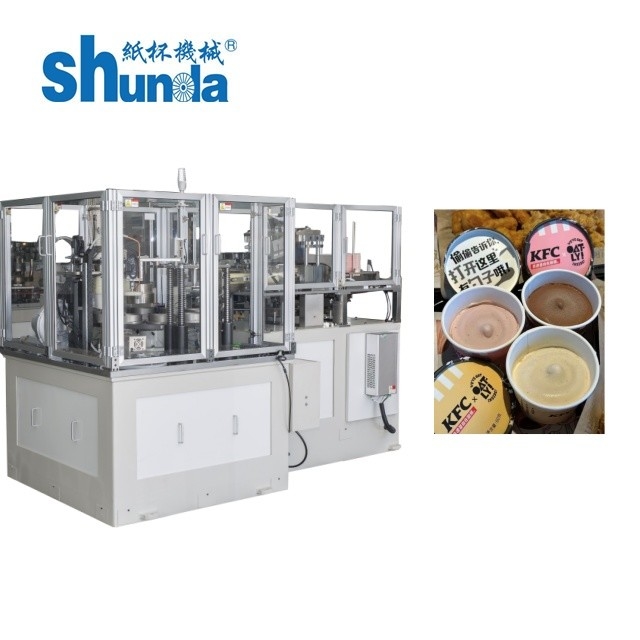

Middle Speed Paper Bowl Forming Machine with Ultrasonic Device

चीन Middle Speed Paper Bowl Forming Machine with Ultrasonic Device आपूर्तिकर्ता
Middle Speed Paper Bowl Forming Machine with Ultrasonic Device आपूर्तिकर्ता Middle Speed Paper Bowl Forming Machine with Ultrasonic Device आपूर्तिकर्ता Middle Speed Paper Bowl Forming Machine with Ultrasonic Device आपूर्तिकर्ता Middle Speed Paper Bowl Forming Machine with Ultrasonic Device आपूर्तिकर्ता

बड़ी छवि :  Middle Speed Paper Bowl Forming Machine with Ultrasonic Device

उत्पाद विवरण:

Place of Origin: China
ब्रांड नाम: SHUNDA
प्रमाणन: ISO9001 CE
Model Number: SMD-80B

भुगतान & नौवहन नियमों:

Minimum Order Quantity: 1 set
मूल्य: negotiable
Packaging Details: standard seeworthy package
Delivery Time: 30 working days after confirm bowl size
Payment Terms: T/T or L/C, Western Union
Supply Ability: 18 sets per month
Contact Now
विस्तृत उत्पाद विवरण
Product: Paper Bowl Making Machine Speed: 70-80 pcs/min
CONFIGURATION: ULTRASONIC&HOT AIR Standard: CE/SGS
OUTPUT: 380V/220V,60HZ Air consumption: 0.5Mpa
Weight: 3.4Ton Demiension: 2500*1800*1700mm
Top Diameter: 90-150mm Bottom Diameter: 60-115mm
Height: 50-135mm Cup size: 6-22oz

Middle Speed Paper Bowl Forming Machine with Ultrasonic Device and Hot Air Sealing System


Specification:

MODEL

                   SMD-80B

SPEED

                   70-80PCS/MIN

MAX CUP SIZE

   150(Top diameter) * 110 (Top diameter)*135 MM(Height)

MATERIAL

                    135-450GRAM

CONFIGURATION

                    ULTRASONIC&HOT AIR

OUTPUT

                    380V/220V,60HZ

AIR COMPRESSOR

                    0.5 M³/Min

NET WEIGHT

                     3.4 TONS

MACHINE SIZE

                    2500  ×1800 ×1700 MM

COUNTER SIZE

                    900 ×900 ×1760 MM


Description:

SMD-80B is a Paper Bowl Making machine,which is designed By HAINING CHENGDA MACHINERY CO.,LTD,
It can produce both single and Double PE coated paper Bowls. As technology development, it will take place  of the formally machines in market day by day.



Advantages:
1.2 sets of original imported hot air system Leister guarantee the stability of heating.
2.Ultrasonic seal the paper cup body,can produce both single and double PE coated paper.
3.Panasonic photoelectricity checking the every part and report.
4.Open cylindrical can divide locating,heigh precision.
5.Automatically Oil lubrication system .
6.Gear work, long life for machinery
7.Inspection system by camera
8.Photoelectricity to track every step


Whole Process:
Middle Speed Paper Bowl Forming Machine with Ultrasonic Device


Applications:

Paper bowl, soup Bowl, noodle bowl...

Middle Speed Paper Bowl Forming Machine with Ultrasonic Device and Hot Air Sealing System



Our QC team:

A QC team with more than 10 professional and technical personnel. To ensure 100% products checking.
Material: Strictly control of material using, meet international requested standards.
Semi-finished products inspection: Product inspection before 100% finished.
Production line test: With work team or data engineer who will inspect machines and lines at fixed period.
Finished Product Inspection: Quality and property test before products are packed and loaded.


Exhibition Show:

Middle Speed Paper Bowl Forming Machine with Ultrasonic Device

Maintaince Notice:

1. Don't be in an environment of corrosive gas or smoke
2. Don't in the product may be splashed water, oil or use chemicals.
3. Please with stable voltage source power supply
4. make sure the power cord in good condition, so as not to cause fire or shock damage.
5. Instrument after electrify please don't touch input and output terminals, lest cause electric shock or instrument malfunction.
6. if you open the instrument shell, there may be a shock hazard.Because of power, has its internal capacitance charging, can keep certain voltage.



After-sale Service:
1.warranty: 3 year

2.the guide booklet will be sent with machine to guide the installation process works,adjust
the whole machine,production,avoide or solve the problem which the buyer will face.

3.we will adjust the machine well for one week before the delivery,ensure the machine has
the perfect performance.

4.we can dispatch technologists to buyer's factory,guiding installation,ajustment for a
period,the buyer incharge of the salary,traffic fee,boarding and lodging,communication and each day 100usd living allowances.

5.we supply the free training of buyer,the training won't stop until the buyer control the whole lesson!

6.we supply the consumable spare parts for frees for three year use.
